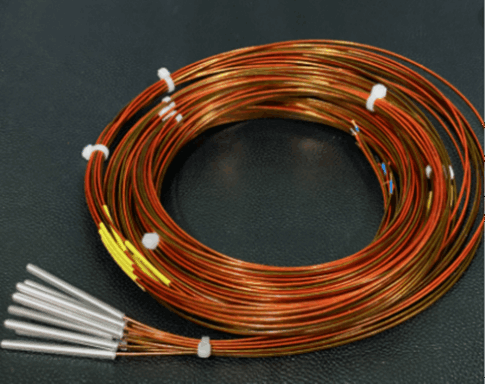

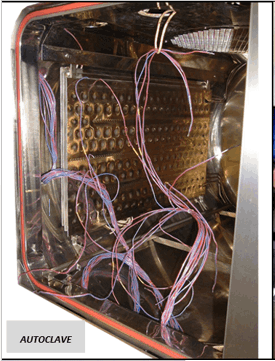

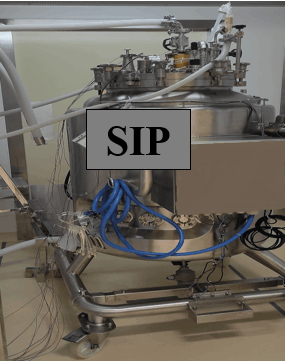

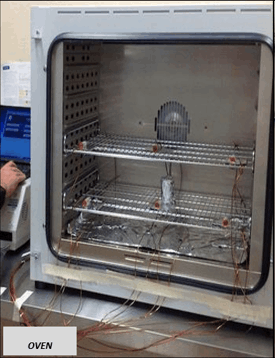

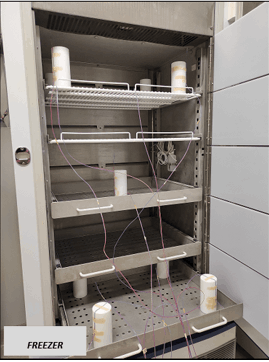

- Ultra-premium thermocouple for critical
process validation such as Autoclave, SIP,
Oven, freezer, Incubator, ETO and etc.

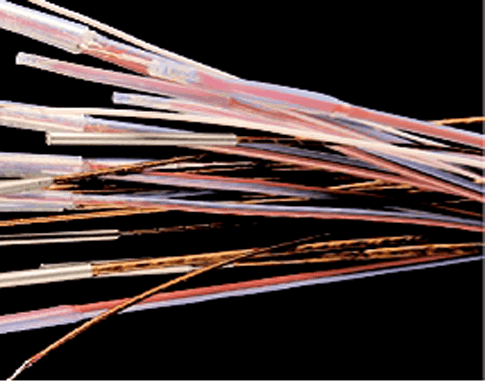

- Type “T” Copper/Constantan stranded
- Range -200 to 220°C according to FDA,
cGMP, ANSI/AMI, DHSS, NIOH, PIC, HTM,
EN & ISO Requirement.
- Insulation of wires – Teflon FEP extruded
- TIP (Hot Junction) sealed in FEP dual shrink
tube close one end.
- Available in 3 and 7 strand configurations
- 22 AWG for 7 Strand & 27 AWG for 3 Strand
- Multi stranded, made of the highest purity
and uniformity available
- Accuracy : 0.1⁰C @ 40⁰C and ± 0.25⁰C @
121⁰C
- 4 times better than premium thermocouple
- Simple, orderly and compact

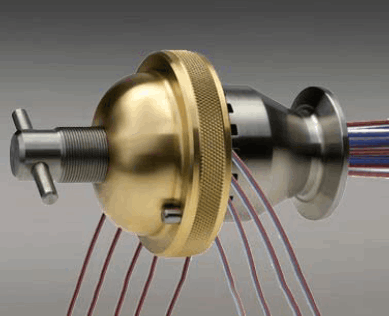

- 18 individual thermocouples
- Up to a maximum pressure of 5 bar
- Maximum temperature of 150° C.
- Via a standard 1 1/2" Tri‐Clamp
- 7 strand Kapton insulated type “T”
thermocouple is used for dry heat
ovens and Tunnels
- Rated up to 350 ºC
- Accuracy: ±1.2⁰C @ 300⁰C
- 22 AWG
